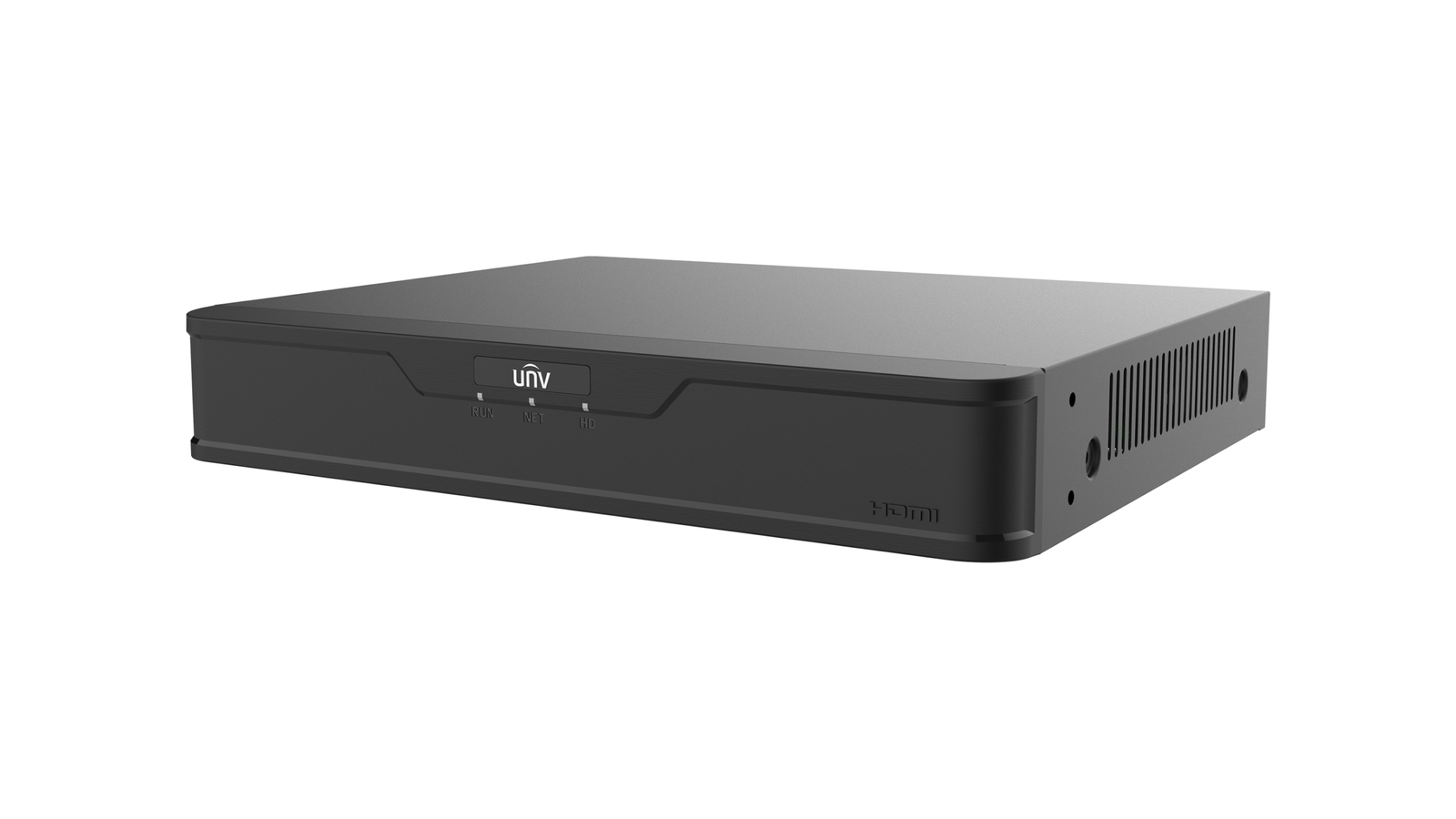

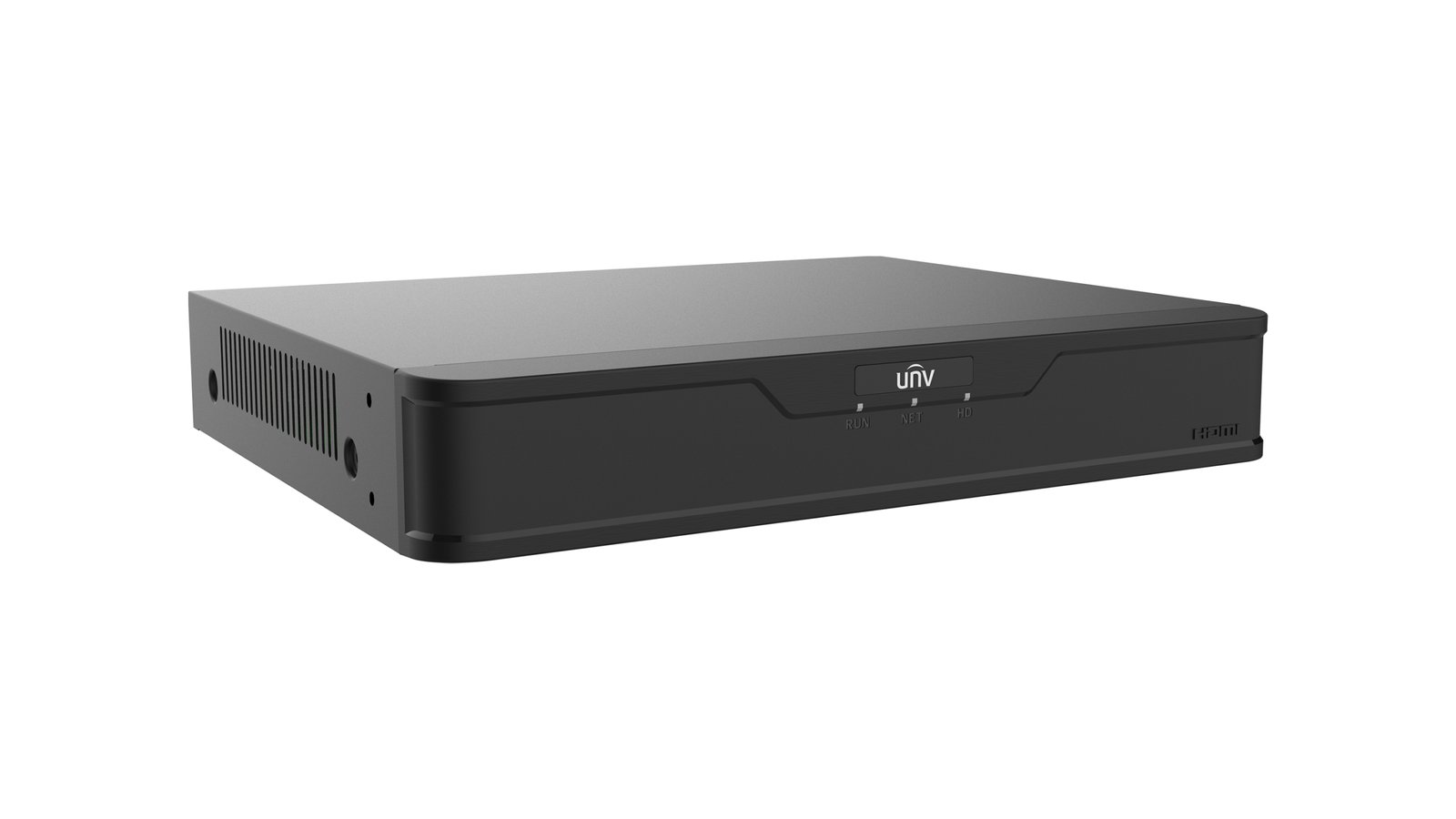

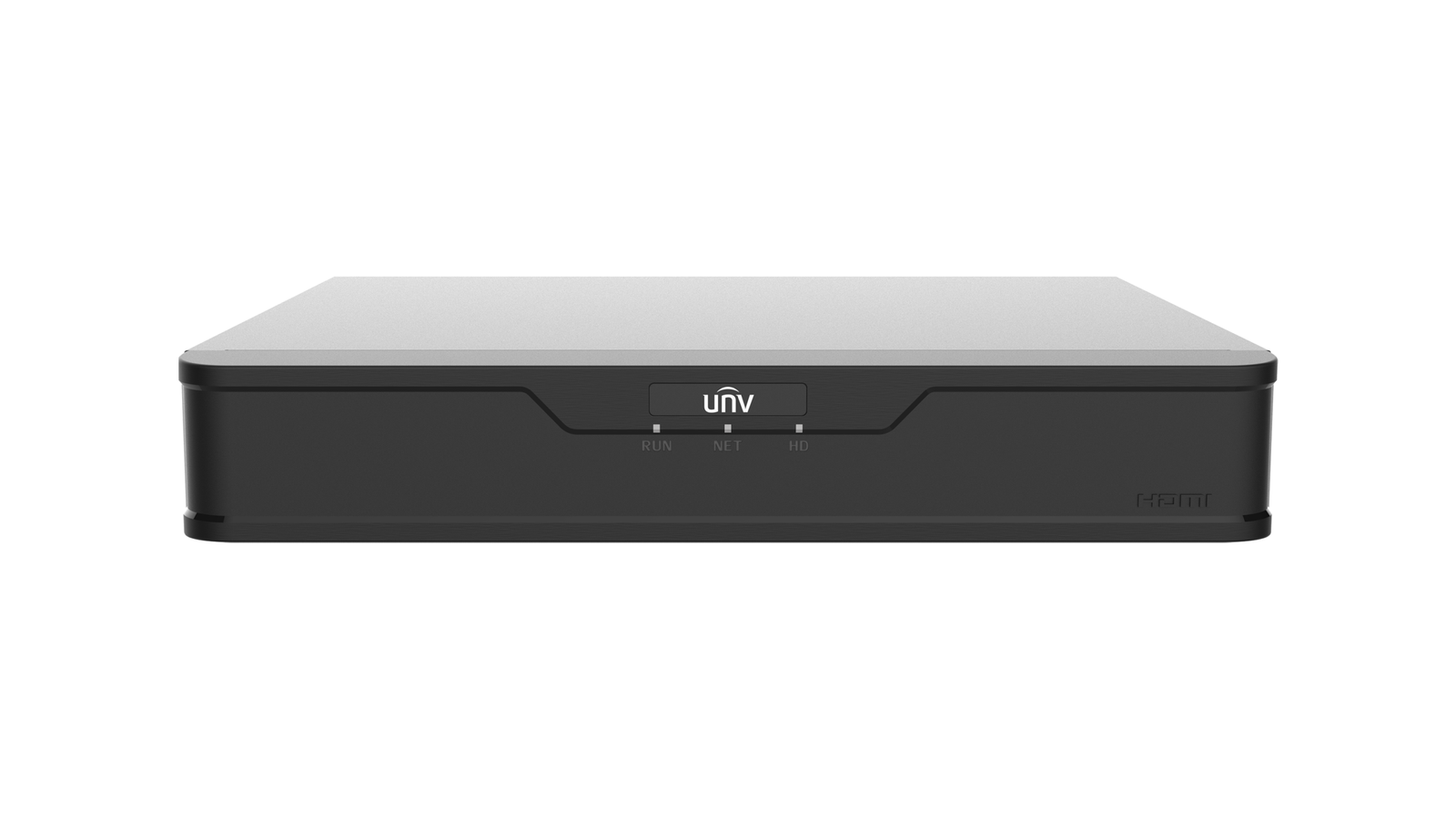

UNV 1 HDD 4-Ch 1U Digital Video Recorder

Description

IP Video Input : 2-ch;
Analog Video Input : 4-ch, BNC;
Max IP Video Input : 6-ch;
Supported Analog Camera Types : Support AHD input:
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input;
RCA Audio Input : 1-ch;
HDMI Output : HDMI: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz;
VGA Output : VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz;
RCA Audio Output : 1-ch;
Live View Display : HDMI/VGA: 1/4/6/8/9;
Recording Resolution : 5MP Lite/4MP Lite/1080P/720P/D1;
Recording Frame Rate : Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Main stream: 4MP Lite@15fps Sub stream: D1@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Main stream: 720P@25fps Sub stream: D1@25fps;
Audio Sample Rate : 8 kHz, 16 bit per channel;
Audio Bit Rate : 64 Kbps per channel;
Decoding Capability : Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15
IP: 1 x 4MP@30, 2 x 1080P@30;
Two-way Audio : 1-ch, RCA (Using the audio input and output);
FTP/Schedule/Event Snapshot : FTP/Event snapshot:4-ch snapshot, up to 704*576 resolution,
Schedule snapshot:not supported;
Incoming Bandwidth : 16Mbps (Up to 24Mbps after all analog channel conversion);
Outgoing Bandwidth : 48Mbps;
Remote Users : 128;
Protocols : TCP/IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP; NTP;
Browser(Plugin) : IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+;
Analog Smart by XVR : Ultra Motion Detection (UMD) ;
Smart Functions by XVR : 4-ch (UMD);
General Alarm : Motion;
Alert Alarm : IP Conflict; Network Disconnected; Disk offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal;
GUI Language : 20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian;
SATA : 1 SATA interface;
Capacity : Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature);
Network Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet Interface;
USB : Rear panel: 2 × USB2.0;
RS485 : N/A;
Power Supply : DC 12 V/2 A;
Working Temperature : -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ );
Working Humidity : ≤ 90% RH (non-condensing);
Power Consumption (without HDD) : ≤ 8W;
Weight (without HDD) : ≤0.9Kg ( 1.98lb );
Dimensions : 260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″);
Certification : CE, FCC, UL, RoHS, WEEE;
CE : EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035;
FCC : Part15 Subpart B
